Products

There are three kinds of copper mesh under the words of contact us.

Versatile woven copper mesh finds many applications

A piece of woven copper mesh on a woman's hand

Woven copper mesh

Woven copper mesh is similar to a cloth with wire threads woven at right angles. Our plain weave copper cloth is flimsy and easy to cut by common scissors. It has an unpolished surface. Confirming to ASTM E2016-06.

Apart from high conductivity, nonmagnetic feature and corrosive resistance, copper cloth is also easy to be welded to form a rigid sheet with uniform opening size. With opening size from 0.006 inch to 0.075inch, copper cloth is very usable as a strainer or a sieve.

In addition, copper mesh owns special red-orange metallic luster and can be made to a great number of handicrafts or artworks.

Feature:

  • High conductivity and rust corrosion.
  • Uniform opening.
  • Red-orange metallic luster.
  • Flexibility.
  • Easy to cut with scissors.

Supply products

A roll of copper woven mesh.
Copper woven mesh rolls
Several small rolls of copper woven meshes on the table.
Cut into small rolls
Several round shape copper woven mesh screens on the table.
Cut into pieces
Several pieces of small copper woven meshes in the carton.
Customized sizes and shapes
A roll of thicker wire woven copper mesh on the gray background.
Thicker wire woven copper mesh

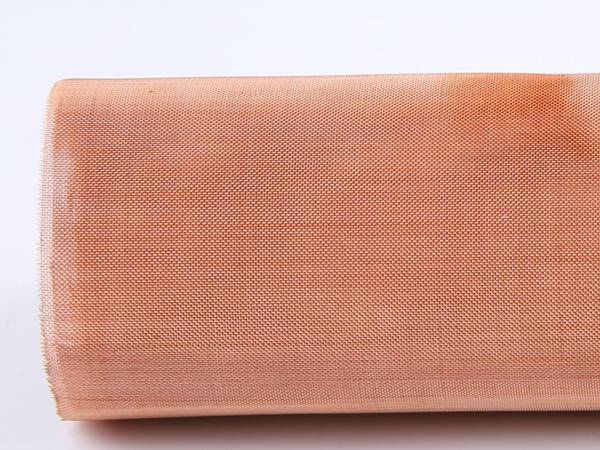

A detail of thicker wire woven copper mesh on the gray background.
Detail – Thicker wire woven copper mesh
A piece of soft wire woven copper mesh.
Soft wire woven copper mesh
A hand is holding a piece of soft wire woven copper mesh.
Details – Soft wire woven copper mesh

Why Choose Our Copper Woven Mesh?

A roll high quality woven copper mesh on black background.
High quality copper mesh

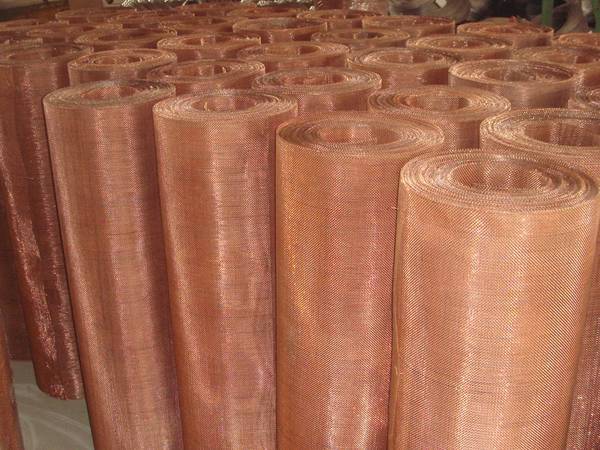

Several rolls of copper woven mesh in the warehouse.
Large quantity stocking copper mesh
Click to See More + Click to Close -
Stock List
Item Specification
CWMS-01 145 MESH x 0.06 mm x 1.22 M (Roll Width)
CWMS-02 100 MESH x 0.035 mm x 1 M (Roll Width)
CWMS-03 100 MESH x 0.05 mm x 1 M (Roll Width)
CWMS-04 100 MESH × 0.055 mm × 1.22 M (Roll Width)
CWMS-05 100 MESH × 0.11 mm × 0.914 M (Roll Width)
CWMS-06 100/90 MESH × 0.11 mm × 0.914 M (Roll Width)
CWMS-07 100 MESH × 0.11 mm × 1.22 M (Roll Width)
CWMS-08 100 MESH × 0.11 mm × 1.83 M (Roll Width)
CWMS-09 80 MESH × 0.14 mm × 0.914 M (Roll Width)
CWMS-10 66.8 MESH × 0.08 mm × 1 M (Roll Width)
CWMS-11 60 MESH × 0.19 mm × 0.914 M (Roll Width)
CWMS-12 50 MESH × 0.225 mm × 0.914 M (Roll Width)
CWMS-13 50 MESH × 0.20 mm × 1 M (Roll Width)
CWMS-14 64 MESH × 0.10 mm × 0.035 M (Roll Width)
CWMS-15 30 MESH × 0.30 mm × 1.83 M (Roll Width)
CWMS-16 31.75 MESH × 0.25 mm × 0.8 M (Roll Width)
CWMS-17 30 MESH × 0.30 mm × 0.914 M (Roll Width)
CWMS-18 30 MESH × 0.23 mm × 0.90 M (Roll Width)
CWMS-19 25.5 MESH × 0.40 mm × 1 M (Roll Width)
CWMS-20 22 MESH × 0.38 mm × 0.914 M (Roll Width)
CWMS-21 22 MESH × 0.38 mm × 1.22 M (Roll Width)
CWMS-22 22 MESH × 0.30 mm × 1.22 M (Roll Width)
CWMS-23 22 MESH × 0.30 mm × 1.524 M (Roll Width)
CWMS-24 18 MESH × 0.38 mm × 1.22 M (Roll Width)
CWMS-25 16 MESH × 0.28 mm × 1.22 M (Roll Width)
CWMS-26 16 MESH × 0.28 mm × 0.914 M (Roll Width)
CWMS-27 16 MESH × 0.28 mm × 1.524 M (Roll Width)
CWMS-28 16 MESH × 0.28 mm × 1.83 M (Roll Width)
CWMS-29 16 MESH × 0.45 mm × 0.914 M (Roll Width)
CWMS-30 16 MESH × 0.45 mm × 1.22 M (Roll Width)
CWMS-31 16.9 MESH × 0.25 mm × 1.2 M (Roll Width)
CWMS-32 15 MESH × 0.23 mm × 0.90 M (Roll Width)
CWMS-33 12 MESH × 0.35 mm × 0.068 M (Roll Width)
CWMS-34 10 MESH × 0.30 mm × 1.2 M (Roll Width)
CWMS-35 10 MESH × 0.63 mm × 0.914 M (Roll Width)
CWMS-36 8 MESH × 0.70 mm × 0.914 M (Roll Width)
CWMS-37 4 MESH × 1.19 mm × 0.914 M (Roll Width)
CWMS-38 2 MESH × 1.0 mm × 0.50 M (Roll Width)
CWMS-39 2 MESH × 1.6 mm × 0.914 M (Roll Width)

Note: * marked wire mesh count is hot saling

Click to See More + Click to Close -
Avaiable Sizes
Item Mesh/Inch Diameter Opening Weight
mm inch mm inch kg/m2
CWM-01 1 3 0.118 22.4 0.882 4.86
CWM-02 2 1.5 0.059 11.2 0.441 2.43
CWM-03 3 1.2 0.047 7.27 0.286 2.33
CWM-04 4 1 0.039 5.35 0.211 2.16
CWM-05 5 1 0.039 4.08 0.161 2.70
CWM-06 6 0.9 0.035 3.33 0.131 2.62
CWM-07 7 0.8 0.031 2.83 0.111 2.42
CWM-08 8 0.8 0.031 2.38 0.094 2.76
CWM-09 10 0.6 0.024 1.94 0.076 1.94
CWM-10 12 0.55 0.022 1.57 0.062 1.96
CWM-11 14 0.5 0.02 1.31 0.052 1.89
CWM-12 16 0.5 0.02 1.09 0.043 2.16
CWM-13 18 0.5 0.02 0.91 0.036 2.43
CWM-14 20 0.4 0.016 0.87 0.034 1.73
CWM-15 20 0.45 0.018 0.82 0.032 2.19
CWM-16 24 0.35 0.014 0.71 0.028 1.59
CWM-17 26 0.3 0.012 0.68 0.027 1.26
CWM-18 28 0.3 0.012 0.61 0.024 1.36
CWM-19 30 0.25 0.01 0.6 0.023 1.01
CWM-20 40 0.2 0.008 0.44 0.017 0.86
CWM-21 50* 0.18 0.007 0.33 0.013 0.87
CWM-22 60 0.16 0.006 0.26 0.01 0.83
CWM-23 60 0.19 0.007 0.23 0.009 1.17
CWM-24 70 0.12 0.005 0.24 0.01 0.54
CWM-25 80 0.12 0.005 0.2 0.008 0.62
CWM-26 80 0.13 0.005 0.19 0.007 0.73
CWM-27 100* 0.1 0.004 0.15 0.006 0.54
CWM-28 100 0.11 0.004 0.14 0.006 0.65
CWM-29 104 0.06 0.002 0.18 0.007 0.20
CWM-30 120* 0.09 0.004 0.12 0.005 0.52
CWM-31 120* 0.058 0.002 0.15 0.006 0.22
CWM-32 120* 0.08 0.003 0.13 0.005 0.41
CWM-33 140 0.07 0.003 0.11 0.004 0.37
CWM-34 145 0.045 0.002 0.13 0.005 0.16
CWM-35 150* 0.06 0.002 0.11 0.004 0.29
CWM-36 150* 0.05 0.002 0.12 0.005 0.20
CWM-37 160 0.05 0.002 0.11 0.004 0.22
CWM-38 160 0.04 0.002 0.12 0.005 0.14
CWM-39 160 0.035 0.001 0.12 0.005 0.11
CWM-40 165 0.05 0.002 0.1 0.004 0.22
CWM-41 180 0.05 0.002 0.09 0.004 0.24
CWM-42 180 0.04 0.002 0.1 0.004 0.16
CWM-43 200* 0.053 0.002 0.07 0.003 0.30
CWM-44 200* 0.05 0.002 0.08 0.003 0.27
CWM-45 200* 0.04 0.002 0.09 0.003 0.17
CWM-46 220 0.05 0.002 0.07 0.003 0.30
CWM-47 230 0.035 0.001 0.08 0.003 0.15
CWM-48 230 0.03 0.001 0.08 0.003 0.11
CWM-49 250 0.04 0.002 0.06 0.002 0.22
CWM-50 250 0.035 0.001 0.07 0.003 0.17
CWM-51 250 0.03 0.001 0.07 0.003 0.12
CWM-52 270 0.035 0.001 0.06 0.002 0.18
CWM-53 270 0.03 0.001 0.06 0.003 0.13
CWM-54 280 0.035 0.001 0.06 0.002 0.19
CWM-55 300 0.03 0.001 0.05 0.002 0.15

Where can copper woven mesh be used?

  • RFI/EMI/RF Shielding
  • Electronic information security
  • Faraday Cages
  • Power generation
  • Insect Screens
  • Outer space exploration and research
  • Fireplace Screen
  • Electronic security
A piece of copper mesh is beside a metal coin.
Copper woven mesh with metallic luster.
A piece of copper woven mesh is rolled beside a metal coin.
Copper woven mesh with smooth surface.
A piece of folded copper woven mesh is beside a metal coin.
Copper woven mesh can be folded.
A roll of copper woven mesh with a metal coin.
Copper woven mesh features high flexibility.

Hot specifications ordered by customers:

  1. 99.9% woven copper mesh - sample
    Aperture: 0.047" × 0.047" approximately.
    Sample size: 3 × A4 size.
  2. Woven copper mesh
    Mesh count: 50 mesh.
    Wire Diameter: 0.012".
    Aperture: 0.008".
    Open Area (%): 16.0.
  3. Plain woven copper mesh
    Mesh count: 20 mesh.
    Wire diameter: 0.005"
    Dimensions: 5' × 100'
    Qty: 7 rolls.
  4. Woven copper mesh
    Mesh count: 100 mesh.
    Wire diameter: 0.002".
    Dimensions: 3-1/3' × 100'
    Qty: 7 rolls.
    Weight: 4.2 kg/roll.
  5. Woven copper wire mesh
    Mesh count: 50 mesh.
    Wire diameter: 0.009".
    Dimensions: 6" × 20".
  6. Plain woven copper mesh
    Wire diameter: 0.177".
    Aperture: 0.75".
    Dimensions: 37" × 12".
    Weight: 4.3 kg/pc.
  7. Woven copper mesh
    Mesh count: 100 mesh.
    Wire diameter: 0.005".
    Aperture: 0.005".
    Open area (%): 25.0.
    Weave pattern: plain.
  8. Woven copper mesh
    Mesh count: 100 mesh.
    Wire diameter: 0.003".
    Aperture: 0.007".
    Open area (%): 49.0.
    Weave pattern: plain.
